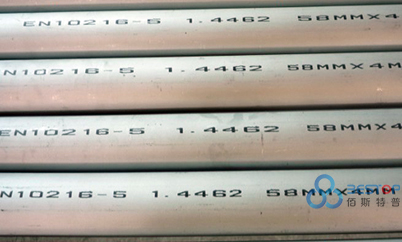

Description:EN 10216/EN10297 Stainless Steel Seamless Tube

Standard: EN 10216-5,EN 10297,DIN 17456, DIN 17458
Material:1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845,TP304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L

Nominal Dia:1/2 “to 24″ NB for seamless pipe
Schedules: 5S, 10S, 40S, 80S, 10, 20, 30…120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size Range for tubing:OD:1/4″ (6.25mm) to 8″ (203mm), WT 0.02” (0.5mm) to 0.5″(12mm)

Length:
30 m(Max) or as your requirement

Process:
Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube

Finish:Annealed & pickled, bright annealing, polished

Ends:Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

Packing:Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test Procedure
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES :ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
