Size Range18 to 4 (DN6-DN100)
Rating PressureClass 2000,3000,6000
Material
Forged Alloy SteelASTM A182 F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F321H,F11,F22,F91

Carbon Steel ASTM A105, A350 LF2, A694 F42, A694 F60, F694 F65, ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3
Stainless Steel ASTM A403 WP304304L,WP316316L, WP317L, WP309 ,WP321, WP321H,WP347 & WPS31254
Alloy Steel ASTM A234 WP1WP12WP11WP22WP5WP7WP9WP91
Duplex and super duplex steel ASTM A815 UNS S31803S32205S32750S32760
Manufacture Standard
MSS-SP-83SP-95SP-97,ASME B16.11,BS3799,JIS B2316,GBT 14383
Surface Treatment Shot blasted, rust-proof black oil
Packing Plywood or Wooden Case Packing Pallet Packing other packing suitably protected for sea-worthly delivery or as requested.

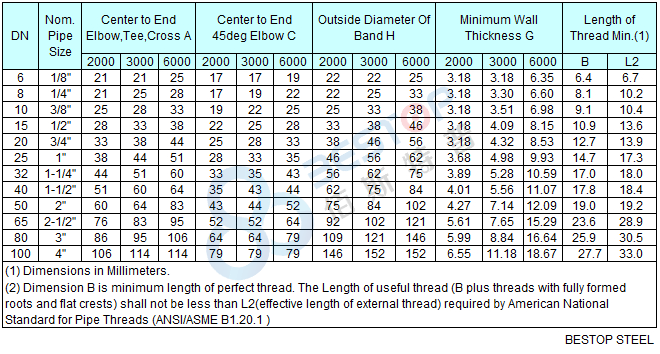

ASME B 16.11-2009
